Cockipt legend with error in 6.3.1

Question

Hello,

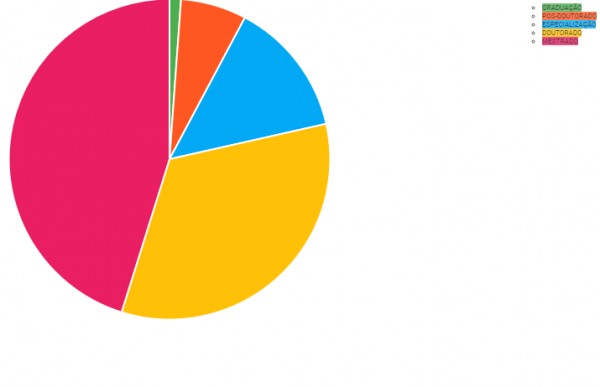

I am updating Knowage to version 6.3.1 and am having problems with the cockpit graphics, the caption is unconfigured and no action.

I emphasize that the caption placement option, present in version 6.2.1, is no longer available ...

Has anyone experienced the same situation and solved it?

Answer 1

Greetings,

In fact the version available for download on the site knowage-site.com is different from the versions available in github (Knowage-Labs). In my production environment I was with the download version of the site, which contains the Highcharts libraries for the construction of the graphics. The Knowage-Labs version uses the Angular in graphics ...

So to use Highcharts in the version available at Knowage-Labs is just:

1. Add the Highchats directory to knowagecockpitengine \ src \ main \ webapp \ js \ lib;
2. Update the highcharts414 directory in knowagecockpitengine \ src \ main \ resources \ chart \ templates;
3. Edit the engine-config.xml file in knowagecockpitengine \ src \ main \ resources, commenting on the "chart js conf START" lines and uncommenting the highcharts414 lines conf START;
4. Edit the chartRenderImport.jsp file in knowagecockpitengine \ src \ main \ webapp \ WEB-INF \ jsp \ chart \ execution by adding the lines:

<!-- Highchart  -->

<script type="text/javascript" src="${pageContext.request.contextPath}/js/lib/highcharts/4.1.4/adapters/standalone-framework.js"></script>
<script type="text/javascript" src="${pageContext.request.contextPath}/js/lib/highcharts/4.1.4/highcharts.src.js"></script>
<script type="text/javascript" src="${pageContext.request.contextPath}/js/lib/highcharts/4.1.4/modules/grouped-categories.js"></script>
<script type="text/javascript" src="${pageContext.request.contextPath}/js/lib/highcharts/4.1.4/highcharts-more.src.js"></script>
<script type="text/javascript" src="${pageContext.request.contextPath}/js/lib/highcharts/4.1.4/highcharts-3d.js"></script>
<script type="text/javascript" src="${pageContext.request.contextPath}/js/lib/highcharts/4.1.4/modules/exporting.src.js"></script>
<script type="text/javascript" src="${pageContext.request.contextPath}/js/lib/highcharts/4.1.4/modules/no-data-to-display.js"></script>
<script type="text/javascript" src="${pageContext.request.contextPath}/js/lib/highcharts/4.1.4/modules/drilldown.src.js"></script>
<script type="text/javascript" src="${pageContext.request.contextPath}/js/lib/highcharts/4.1.4/modules/heatmap.js"></script>
<script type="text/javascript" src="${pageContext.request.contextPath}/js/lib/highcharts/4.1.4/modules/treemap.js"></script>
<script type="text/javascript" src="${pageContext.request.contextPath}/js/lib/highcharts/4.1.4/modules/data.js"></script>
<script type="text/javascript" src="${pageContext.request.contextPath}/js/src/angular_1.4/chart/treemap/treemap.js"></script>

5. Have fun!
